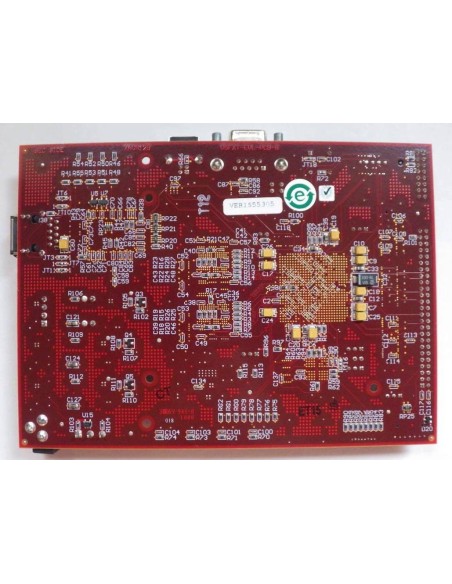

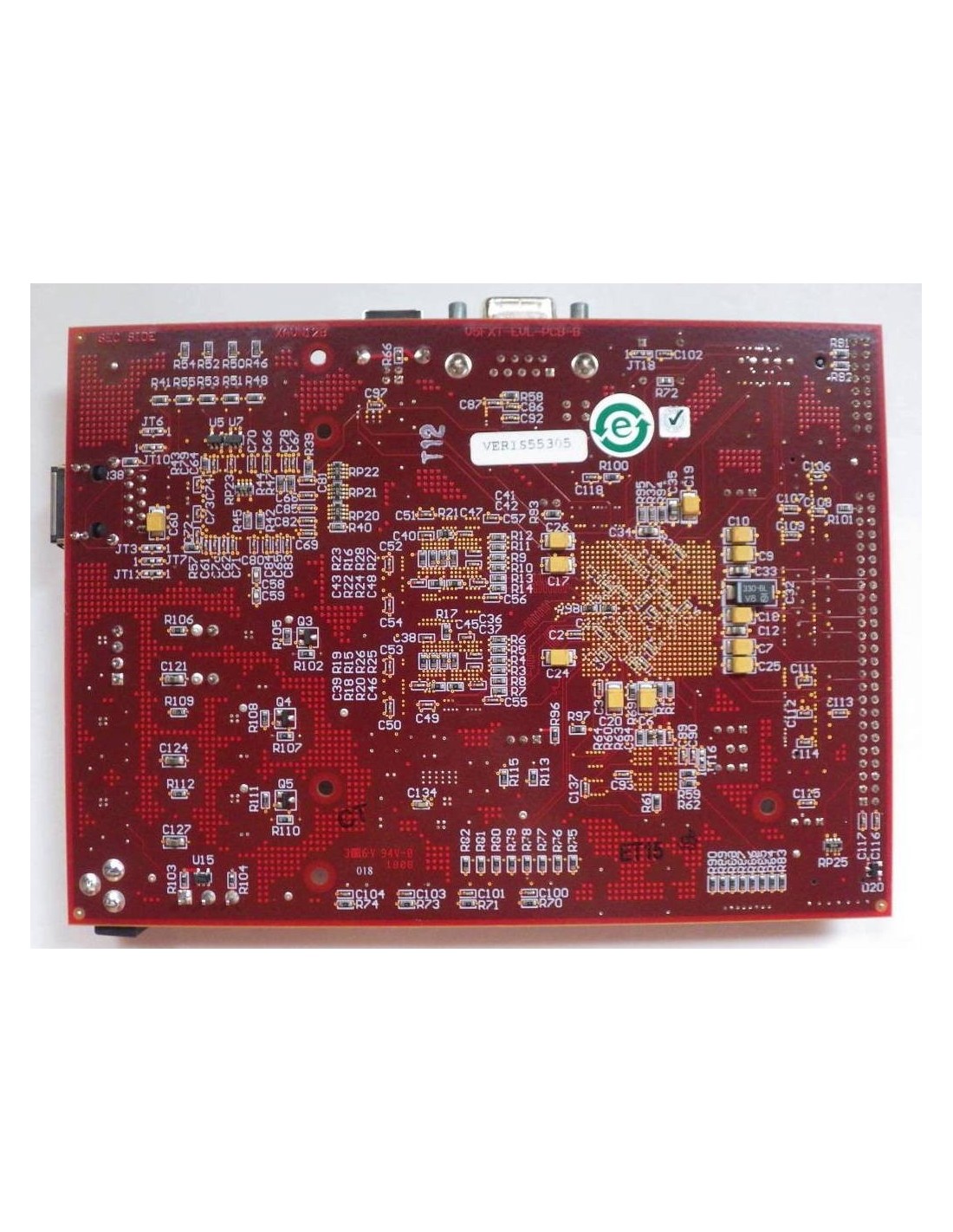

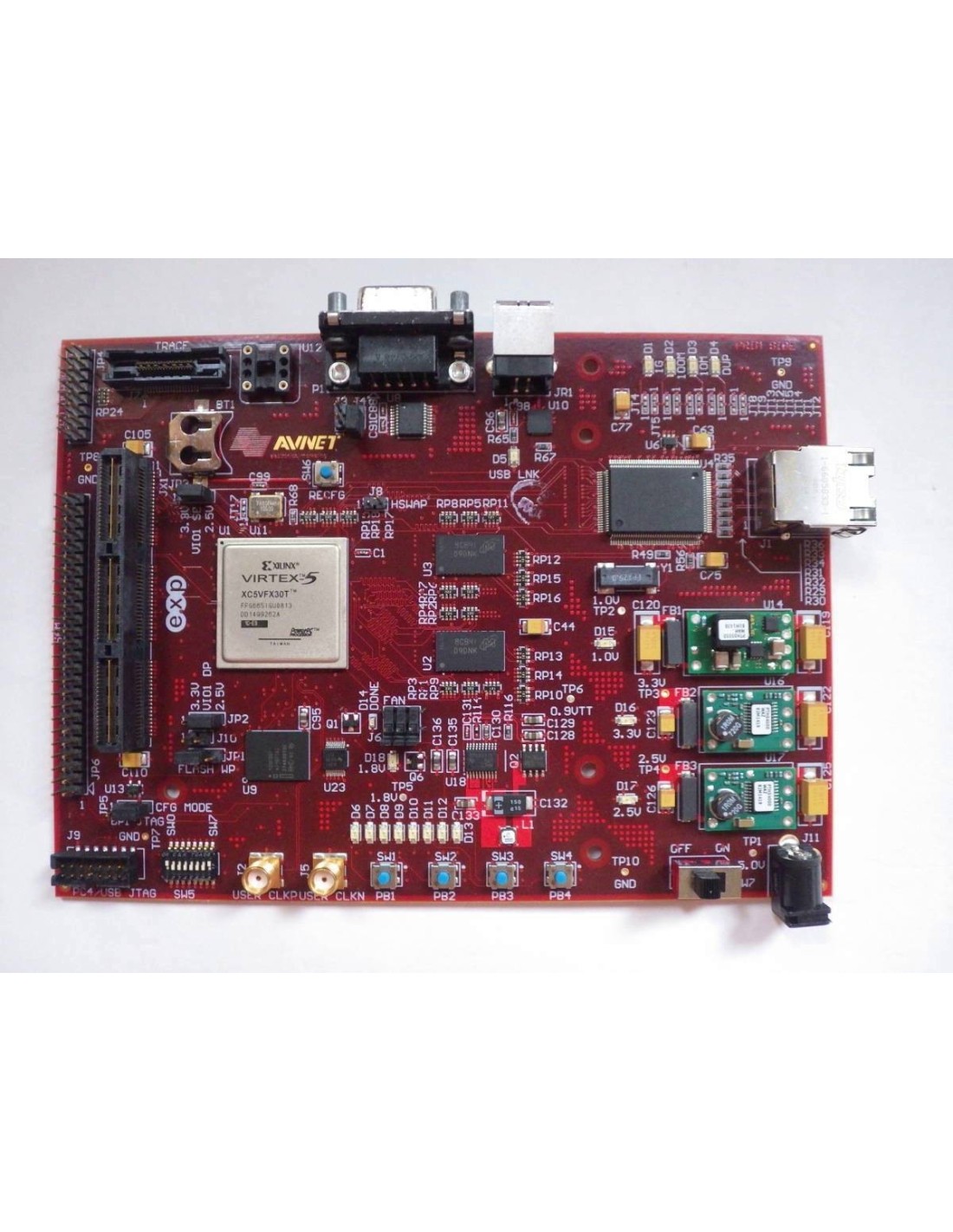

The Xilinx Virtex‑5 XC5VFX30T (Avnet development boards) is a high‑performance FPGA from the Virtex‑5 FXT family, built on 65 nm CMOS technology with embedded PowerPC 440 processors, DSP slices, block RAM, PCIe endpoints, and tri‑mode Ethernet MACs. At launch (mid‑2006), devices in the Virtex‑5 FXT line were priced around US$ 1,000–1,200 per unit, depending on package and speed grade.
🔹 Description of Virtex‑5 XC5VFX30T
- Family: Virtex‑5 FXT (embedded systems focus).
- Process: 65 nm copper CMOS.
- Logic capacity: ~32,768 logic elements (LEs).
- Embedded memory: ~2.4 Mbit block RAM.
- DSP slices: 25×18 multipliers, optimized for signal processing.
- Hard IP blocks:
- PowerPC 440 embedded processor (dual‑core support in larger devices).
- PCI Express endpoint (integrated).
- Tri‑mode Ethernet MAC.
- High‑speed serial transceivers (up to 6.5 Gb/s).
- Clocking: Digital Clock Managers (DCM) and PLLs for flexible synthesis.
- I/O: ~360 pins, SelectIO technology with digitally controlled impedance.
- Package: FCBGA‑665 (Flip‑Chip Ball Grid Array).
- Target applications:
- High‑performance embedded systems.
- Networking and telecom equipment.
- DSP‑intensive designs.
- ASIC prototyping.
